ZDPS 1A

ZDPS 1A
ZDPS 1A
Name ZDPS 1A
Type Nanosatellite
Units or mass 3.5 kg
Organisation Zhejiang University
Institution University
Entity Academic / Education
Nation China
Oneliner

Demonstrate platform technologies with focus on camera, COTS components and ADCS.

Description

Platform verification. The space environmental adaption and application of the various parts including the miniaturized commercial-off-the-shelf (COTS) MEMS accelerometers and gyroscopes, the in-house-developed panoramic CMOS camera and the novel tri-junction solar cells were to be experimented. Attitude determination and control experimentation. The correctness and effectiveness of the attitude determination and control scheme were to be evaluated via attitude de-tumbling and stabilizing experiments. Micro panoramic camera. Momentum wheel is employed to offer gyro stiffness stability in the pitch.

Sources [1]
Photo sources [1] [2]

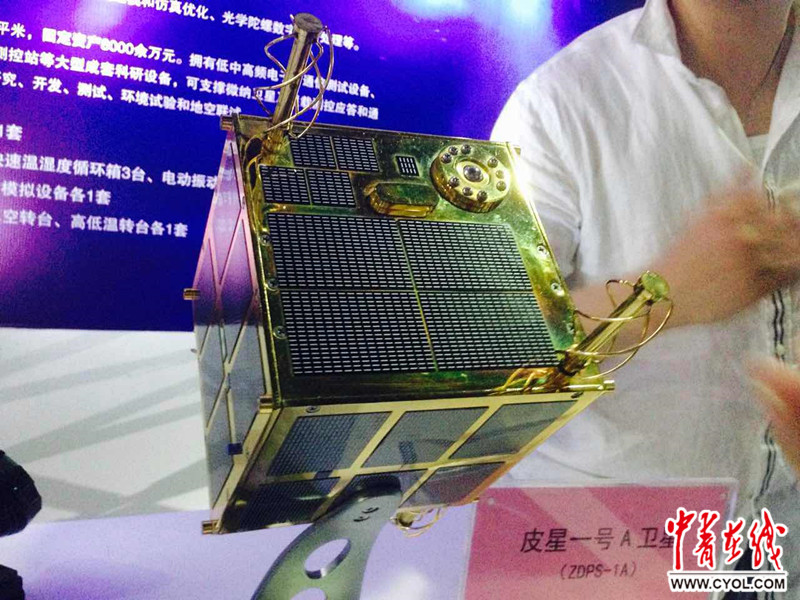

Space photos ZDPS 1A

[1]

Related Spacecraft

Name Status Launch Orbit
ZDPS 1A 01 (Zheda Pixing, Pixing 1) Was operational until XXXX-XX-XX, more than 2 years? 2010-09-22 650 km, 98.2 deg, SSO
ZDPS 1A 02 (Zheda Pixing, Pixing 1) Was operational until XXXX-XX-XX, more than 2 years? 2010-09-22 650 km, 98.2 deg, SSO

Last modified: 2023-06-08
Detailed ZDPS 1A entry in the Database
