Satellite Alfa Crux (AlfaCrux)
Form factor CubeSat
Units or mass 1U
Status Reentry 2024-04-05. Was operational (Numerous reports with data on SatNOGS and a publication as of 2022-12-21. IAC 2023 paper.)
Launched 2022-04-01
NORAD ID 52160
Deployer EXOpod 12U/16U [Exolaunch]
Launcher Falcon 9 (Transporter-4)
Organization University of Brasilia
Institution University
Entity Academic / Education
Nation (HQ) Brazil
Nation (AIT) Spain
Manufacturer AIVT by Alen Space
Launch brokerer Exolaunch

Research and experiments to be carried out in the communications field.


Research and experiments to be carried out in the communications field. Also study the effects of the space weather on satellite communications in equatorial latitudes.

A team of students from UnB will participate in the development of a complete CubeSat-type mission, from its design to the integration of subsystems and payload, performing verification tests and operating the satellite once in orbit. All this will be possible thanks to Alén Space’s partnership with UnB allowing the use of its facilities through a hands-on training programme.

The integration and validation of the CubeSat will take place this summer at Alén Space’s facilities, with the presence of the Brazilian students. The goal is for the nanosatellite to be ready and delivered to the launcher in October or November 2021. This planning will allow the complete mission to be carried out in a record time of eight months.

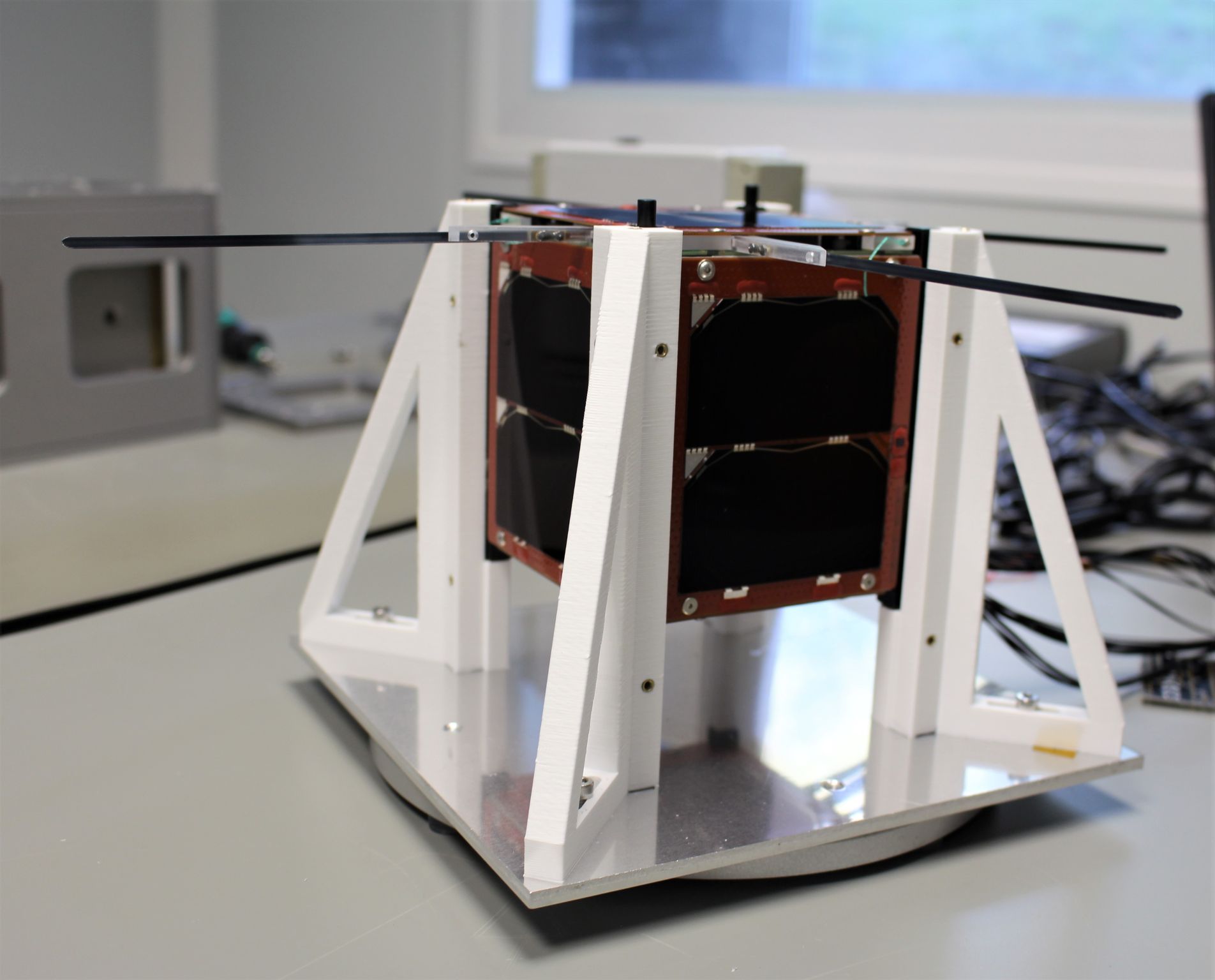

Together, the Galician and Brazilian teams will work on the Alfa Crux satellite, a 1U platform, which includes a power system, solar panels, batteries, on-board computer, communications system, antennas and structure; on-board and mission control software; a TOTEM SDR communications payload, prepared to provide communications demonstrations and to carry out SDR (Software Defined Radio) experiments. On the top of all it, an integral GS-Kit solution for the installation of a satellite tracking ground station at the University of Brasilia.


The results of AlfaCrux magnetometer telemetry processing revealed that the CubeSat attitude motion is affected by quite strong residual magnetic dipole. Its value should be estimated in real-time for better onboard estimation of the attitude motion for future missions. The paper demonstrated the results of successful application of the differential evolution algorithm for motion reconstruction. The AlfaCrux motion is characterized as passive magnetic stabilization.

Sources [1] [2] [3] [4] [5]
Photo sources [1] [2] [3] [4] [5]
